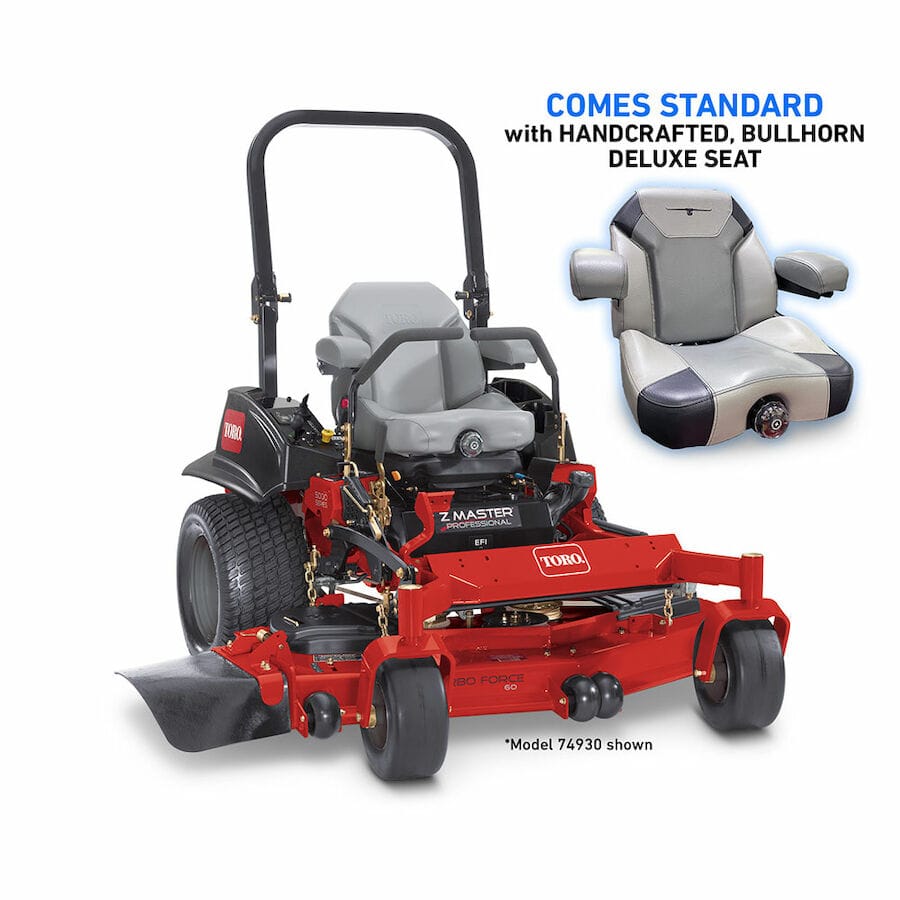

Z Master® 5000 Series

Call for Pricing

Price

When you cover a lot of ground, you need a machine that keeps up. Toro’s Z Master® 5000 Series packs the power, fuel efficiency and comfort you demand.

Master® 5000 EFI – 25 hp (18.4kW) Kohler® Command Pro EFI 747cc Engine with 52 in. (132 cm) TURBO FORCE® deck.

Category:

New, Toro, Zero Turn Mowers

Available in a Variety Options: Deck Sizes, Engines, Drive Tires, Anti-Scalp Wheels, etc.

Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
Horizon360^® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications taken from 52 in.

Adjustable Discharge Baffle	Standard, Tools-Free
Air Filter	Heavy-Duty Canister Air Cleaner
Anti Scalp Wheels	3 Standard, 1 Optional
Armrests	Standard
Blade Tip Speed	18,500 ft/min / 5,638 m/min
Blades	0.204 in. (0.5 cm) heat-treated steel
Box Dimensions	91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm
CARB Compliant	CARB Compliant
Carrier Frame	3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
Caster Tires	13 in. x 6.5 in. – 6 in. (33 cm x 16.5 cm – 15.2 cm) Flat-Free Semi-Pneumatic
Comfort Platform	Deluxe Suspension with 3-D Isolation Mounts
Deck Design	80-grade 7-gauge 52″ (132 cm) TURBO FORCE® w/bull-nose bumper
Deck Material	7 Gauge Steel
Deck Size	52 in / 132 cm
Discharge Chute	Rubber
Drive System	Hydraulic Unitized Pumps and Wheel Motors
Drive Tires	23 in. x 9.5 in. – 12 in. (58.4 cm x 24.1 cm – 30.5 cm)
Engine	25 HP* (18.4 kw) Kohler® Command Pro EFI 747cc
Engine Brand	Kohler
Engine Displacement (cc)	747 cc
Engine Horsepower	25 hp
Forward Ground/Transport Speed	Up to 10.0 mph / 16.0 kph
Front Bumper	Reinforced Bull-Nose
Fuel Capacity	12 gal. / 45.4 L / 48 Qt.
Fuel Type	Gasoline
Greasable Bearings	Yes
Height of Cut	1.0 – 5.5 in. / 2.5 – 14.0 cm
Hour Meter	Standard
Hydraulic Fluid	Premium synthetic
Product Type	Zero Turn Mowers
Product Use	Commercial
Roll-Over Protection System (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 22.9 cm Diameter Cast Aluminum
Start Type	Electric
Steering Controls	1-5/8″ (4.1 cm) Diameter Grips; Adjustable, Dampened
Weight	1,095 lbs / 496.7 kg

Disclaimer

*The gross horsepower of this engine was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAE J2723. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
